OUR WORK · THAMES DITTON

Bespoke Garden Room in Thames Ditton

A complete 5 × 4 metre turnkey garden room, finished with red cedar, a generous rooflight and a comfortable interior.

Finished red cedar garden room in Thames Ditton
Location
Thames Ditton
Size
5 × 4 metres
Delivery
Complete turnkey project
THE PROJECT

From foundations to a finished retreat.

Built by A&N Surrey Construction with a concrete base, C24 timber frame, red cedar cladding, a 3 × 1 metre skylight, fitted air conditioning and interior finishes.

  1. Site clearance

    Clearing and preparing the site for the new garden room.

  2. Concrete base and floor construction

    Installing a damp-proof membrane (DPM) beneath the concrete base before pouring the concrete. The floor incorporated 90 mm PIR insulation topped with screed.

  3. Wall construction

    Building the walls using 4 × 2-inch C24 graded timber framing and installing 18 mm OSB sheathing.

  4. Roof construction and skylight

    Constructing the roof using 8 × 2-inch C24 graded timber framing, installing a 3 × 1-metre skylight to bring natural light into the room, and fitting guttering.

  5. Doors and windows

    Installing the doors and windows.

  6. External cladding

    Installing a breathable membrane and a ventilation gap behind the external cladding. Finishing the exterior with red cedar cladding, with fire-resistant cement board on the elevations close to the boundary fence.

  7. Electrical and air conditioning installation

    Carrying out the electrical first fix and preparing the services for the air conditioning system.

  8. Insulation and interior finishes

    Installing 90 mm PIR insulation and finishing the internal walls with MDF cladding. Completing the remaining plastering and painting.

  9. Flooring and final installations

    Laying laminate flooring over the prepared screed, completing the electrical installation and fitting the air conditioning system.

  10. Final clean-up and handover

    Completing the final clean-up and handing over the garden room as a fully finished space, ready to use.

DURING · AFTER

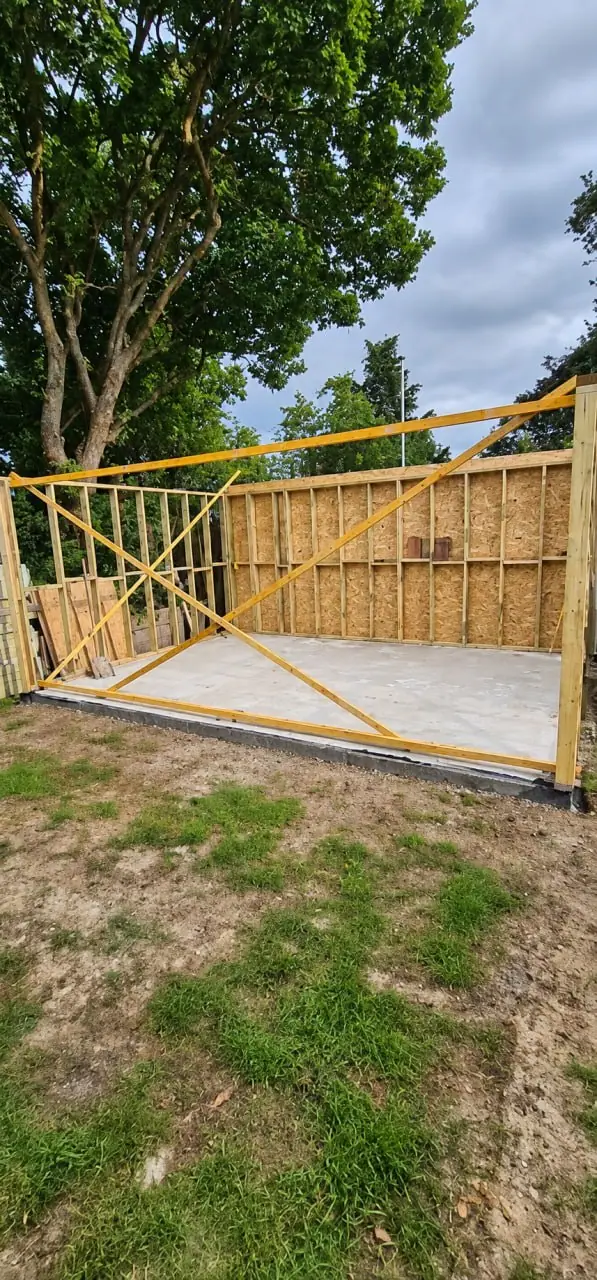

Timber wall frame built on the prepared concrete base
Timber wall frame built on the prepared concrete base

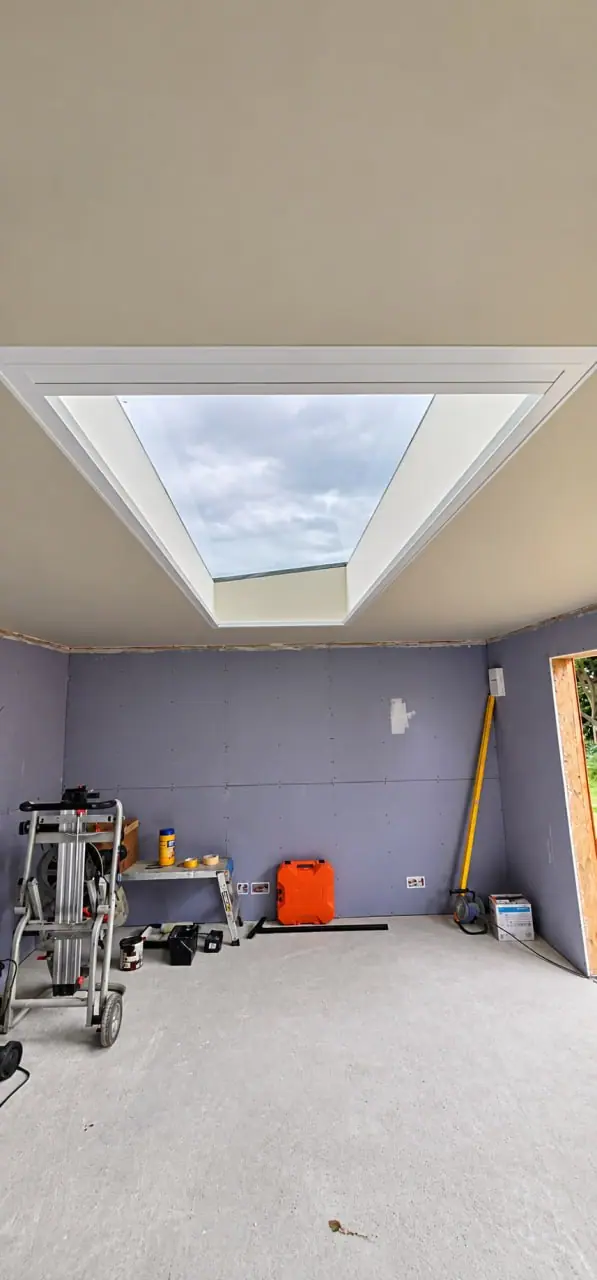

Rooflight and interior during construction
Rooflight and interior during construction

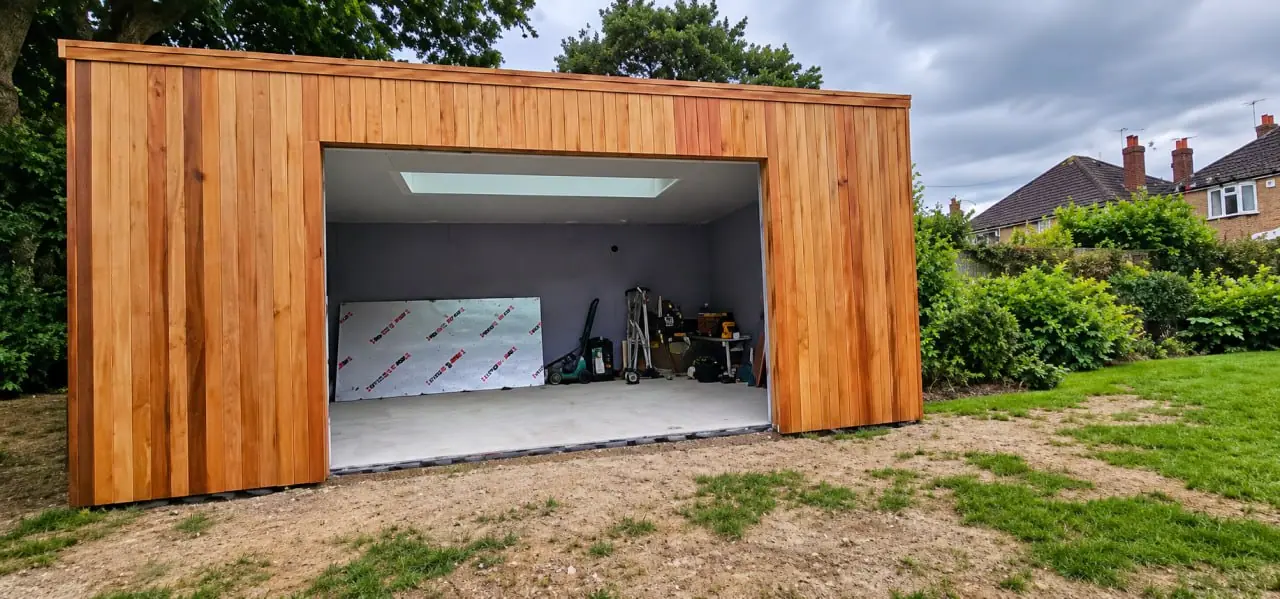

Red cedar exterior while the doors were being fitted
Red cedar exterior while the doors were being fitted
Finished cedar-clad garden room with glazed doors
Finished cedar-clad garden room with glazed doors

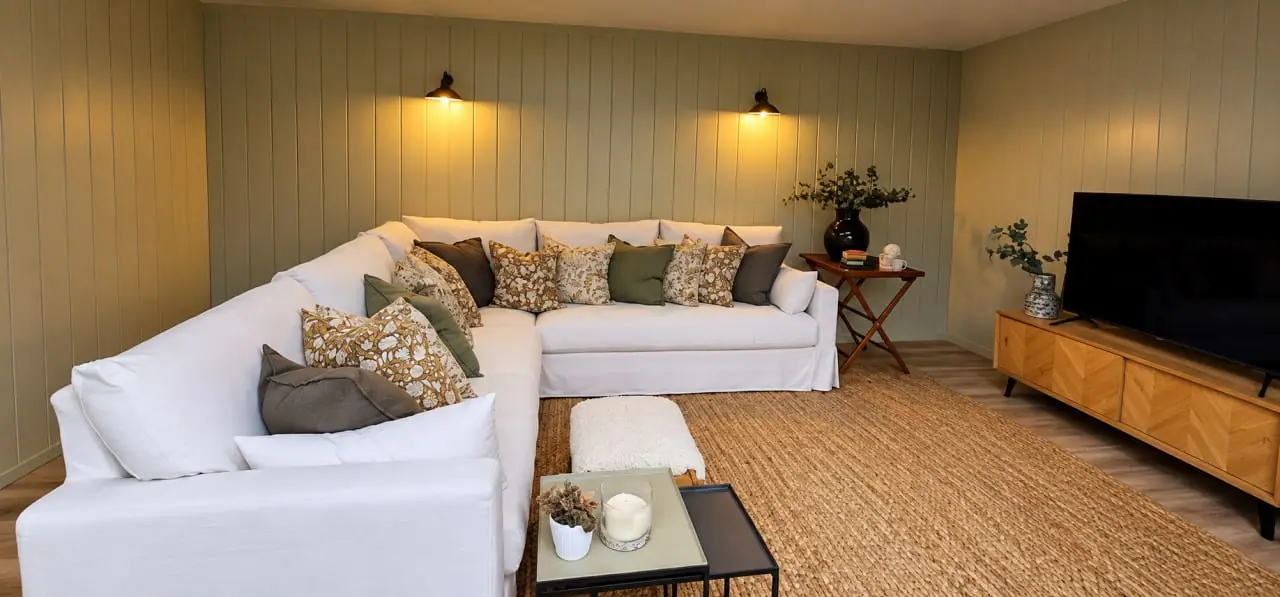

Finished interior with MDF-clad walls and lighting
Finished interior with MDF-clad walls and lighting

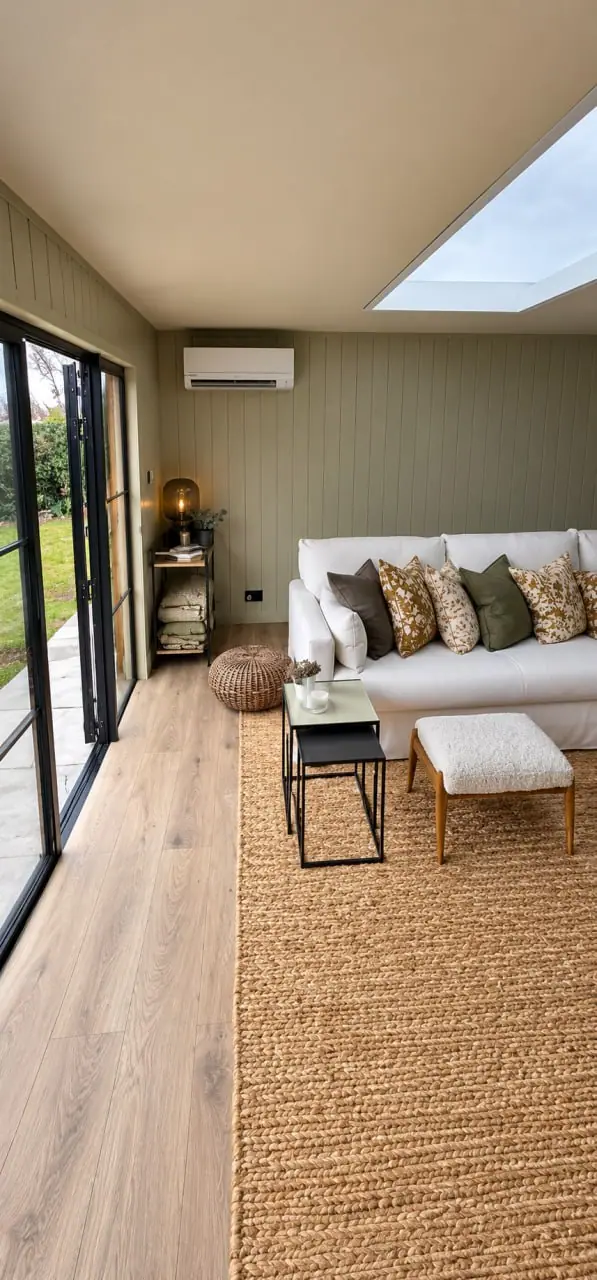

Completed interior showing rooflight and air conditioning
Completed interior showing rooflight and air conditioning
WHAT OUR CUSTOMER SAID · 10/10

Construction of garden room

Andras and his team were a delight. Polite, tidy and hard working with superb craftsmanship. Everything went to schedule and the quality of the finish is amazing. We’re so pleased we went with Andras. Can’t recommend A & N Surrey Construction enough. You won’t be disappointed.
PROJECT TIMELINE

Build time: 3 weeks

The complete project, from site clearance to final handover, was completed in three weeks.
